Date Widget

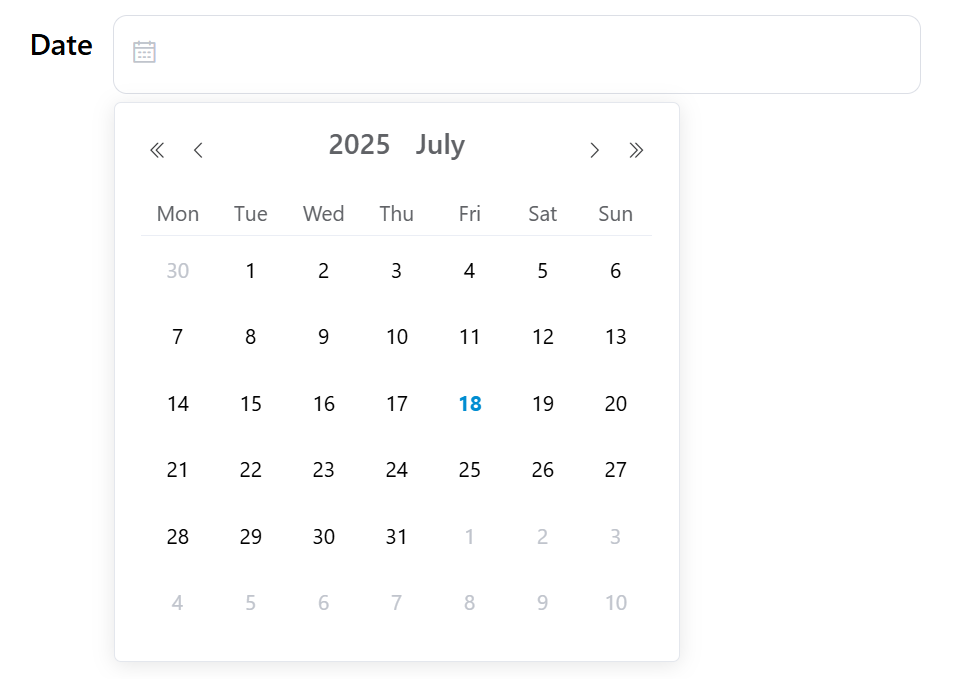

The Date widget provides a comprehensive date and time selection interface with multiple display formats and configuration options. It supports single dates, date ranges, time selection, and various validation rules.

Widget Overview​

The Date widget is built on Element UI's date picker component and offers flexible date/time input capabilities with extensive customization options including format specification, validation rules, and dynamic behavior.

Configuration Options​

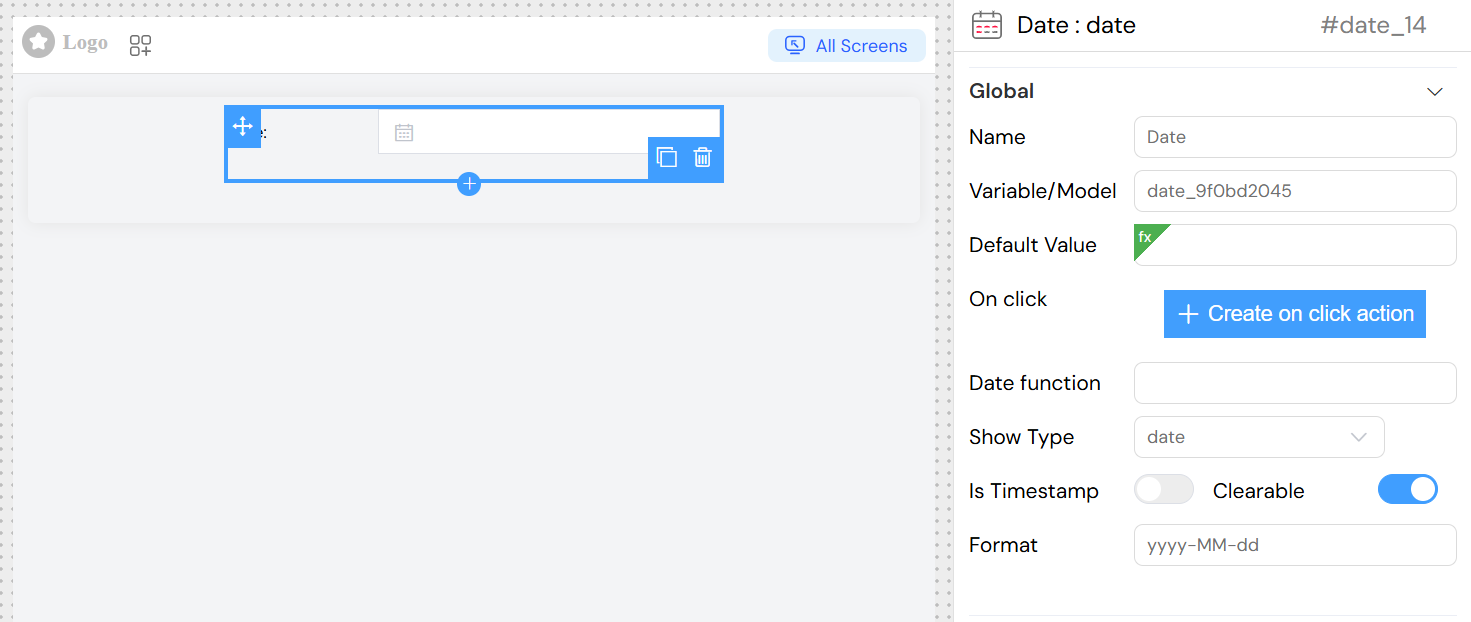

Global Settings​

Basic Configuration​

Name

• Field: Name
• Description: Display label for the date widget
• Type: Text input
• Required: Yes

Variable/Model

• Field: Variable/Model
• Description: The data model property that will store the selected date value
• Type: Text input
• Required: Yes
• Note: Must be a unique identifier within the form scope

Date-Specific Configuration​

Date Function

• Field: Date function
• Description: Custom JavaScript function to control date picker behavior
• Type: Text input
• Usage: Define custom date restrictions or calculations
• Example: return { disabledDate: (time) => time.getTime() < Date.now() }

Show Type

• Field: Show Type
• Description: Determines the date picker display format and selection mode
• Type: Dropdown selection
• Options:
  • year - Year selection only
  • month - Month selection only
  • date - Single date selection
  • dates - Multiple date selection
  • datetime - Date and time selection
  • datetimerange - Date and time range selection
  • daterange - Date range selection
• Default: date

Is Timestamp

• Field: Is Timestamp
• Description: When enabled, returns timestamp value instead of formatted date string
• Type: Toggle switch
• Default: false

Clearable

• Field: Clearable
• Description: Allows users to clear the selected date
• Type: Toggle switch
• Default: true

Range-Specific Settings​

Start Placeholder

• Field: Start Placeholder
• Description: Placeholder text for the start date in range pickers
• Type: Text input
• Applies to: daterange, datetimerange types
• Example: "Start date"

End Placeholder

• Field: End Placeholder
• Description: Placeholder text for the end date in range pickers
• Type: Text input
• Applies to: daterange, datetimerange types
• Example: "End date"

Format Configuration​

Format

• Field: Format
• Description: Date/time display format using moment.js format strings
• Type: Text input
• Examples:
  • YYYY-MM-DD - 2023-12-25
  • DD/MM/YYYY - 25/12/2023
  • YYYY-MM-DD HH:mm:ss - 2023-12-25 14:30:00
  • MMM DD, YYYY - Dec 25, 2023

Default Value​

Default Value

• Field: Default Value
• Description: Initial value for the date widget
• Type: Dynamic input with autocomplete suggestions
• Supports:
  • Static dates: 2023-12-25
  • Dynamic expressions: {{currentDate}}, ${today}
  • Relative dates: {{moment().add(7, 'days')}}

Validation​

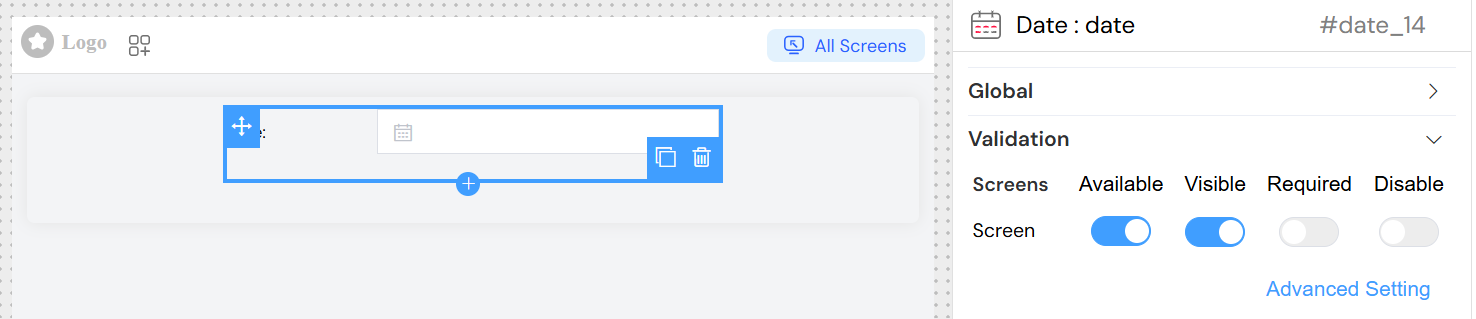

Screen-Based Validation​

Configure widget behavior across different screens (mobile, tablet, desktop):

Available

• Controls whether the widget is available on specific screen types
• Type: Toggle switch per screen

Visible

• Controls widget visibility on specific screen types
• Type: Toggle switch or advanced expression
• Advanced: Use JavaScript expressions like {{user.role === 'admin'}}

Required

• Makes the field mandatory on specific screen types
• Type: Toggle switch or advanced expression
• Validation: Triggers form validation if empty

Disable

• Disables user interaction on specific screen types
• Type: Toggle switch or advanced expression

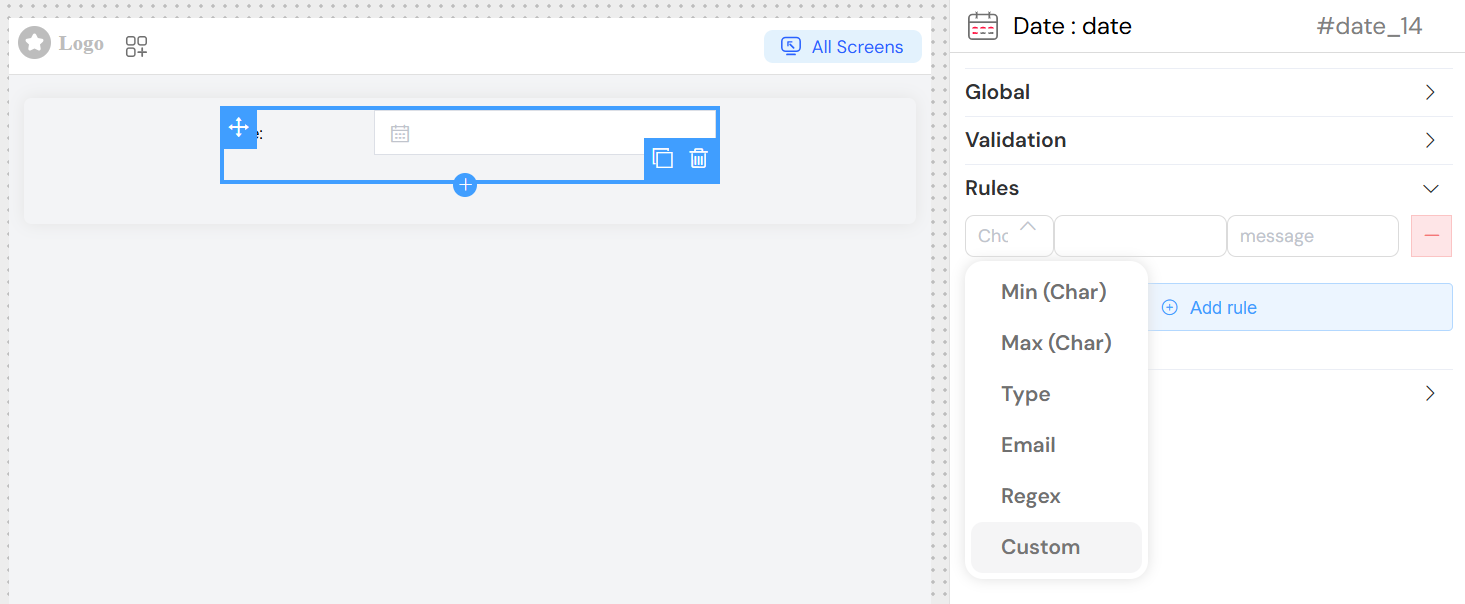

Validation Rules​

Custom Rules

• Purpose: Define specific validation criteria
• Configuration:
  • Rule Type: Select from predefined rule types
  • Value: Rule parameter (if applicable)
  • Message: Custom error message
• Examples:
  • Minimum date validation
  • Maximum date validation
  • Custom date range validation

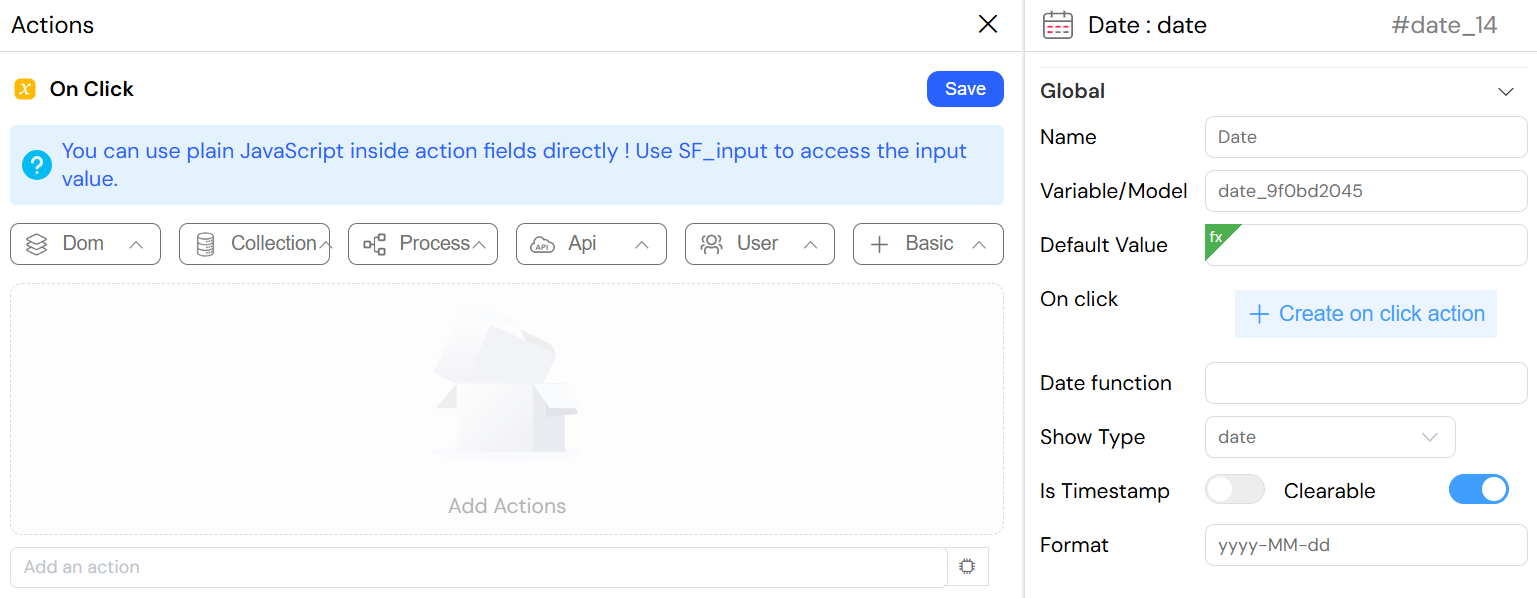

Actions​

On Click

• Field: On click
• Description: JavaScript code executed when date selection changes
• Type: Code editor or action builder
• Context Variables:
  • SF_input.value - Selected date value
  • SF_input.SF_currentIndex - Current loop index (if in a loop)
• Example: console.log('Date selected:', SF_input.value)

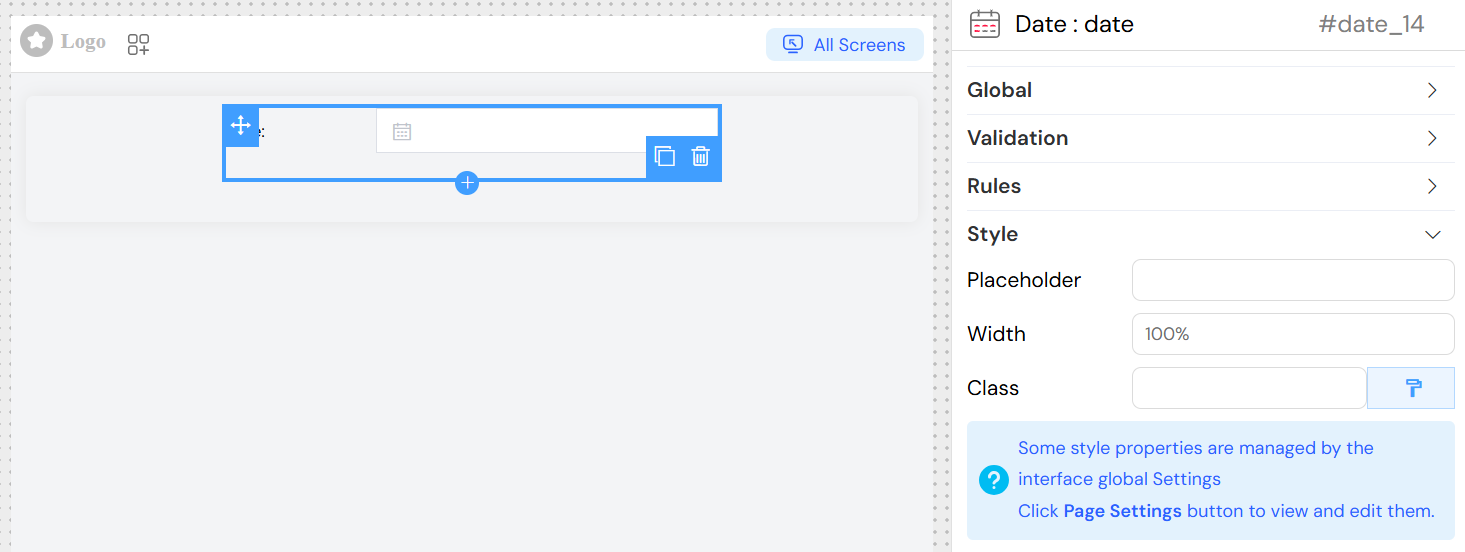

Style Configuration​

Placeholder

• Field: Placeholder
• Description: Placeholder text displayed when no date is selected
• Type: Text input
• Example: "Select a date"

Width

• Field: Width
• Description: Widget width specification
• Type: Text input
• Examples: 100%, 300px, 50rem

Class Names

• Field: Class
• Description: Custom CSS classes for styling
• Type: Text input with dynamic class support
• Examples: custom-date-picker, highlighted-field

Dynamic Classes

• Purpose: Apply conditional CSS classes based on data
• Configuration: Use the paint brush button for advanced class configuration
• Example: Apply different styles based on selected date validity

Usage Examples​

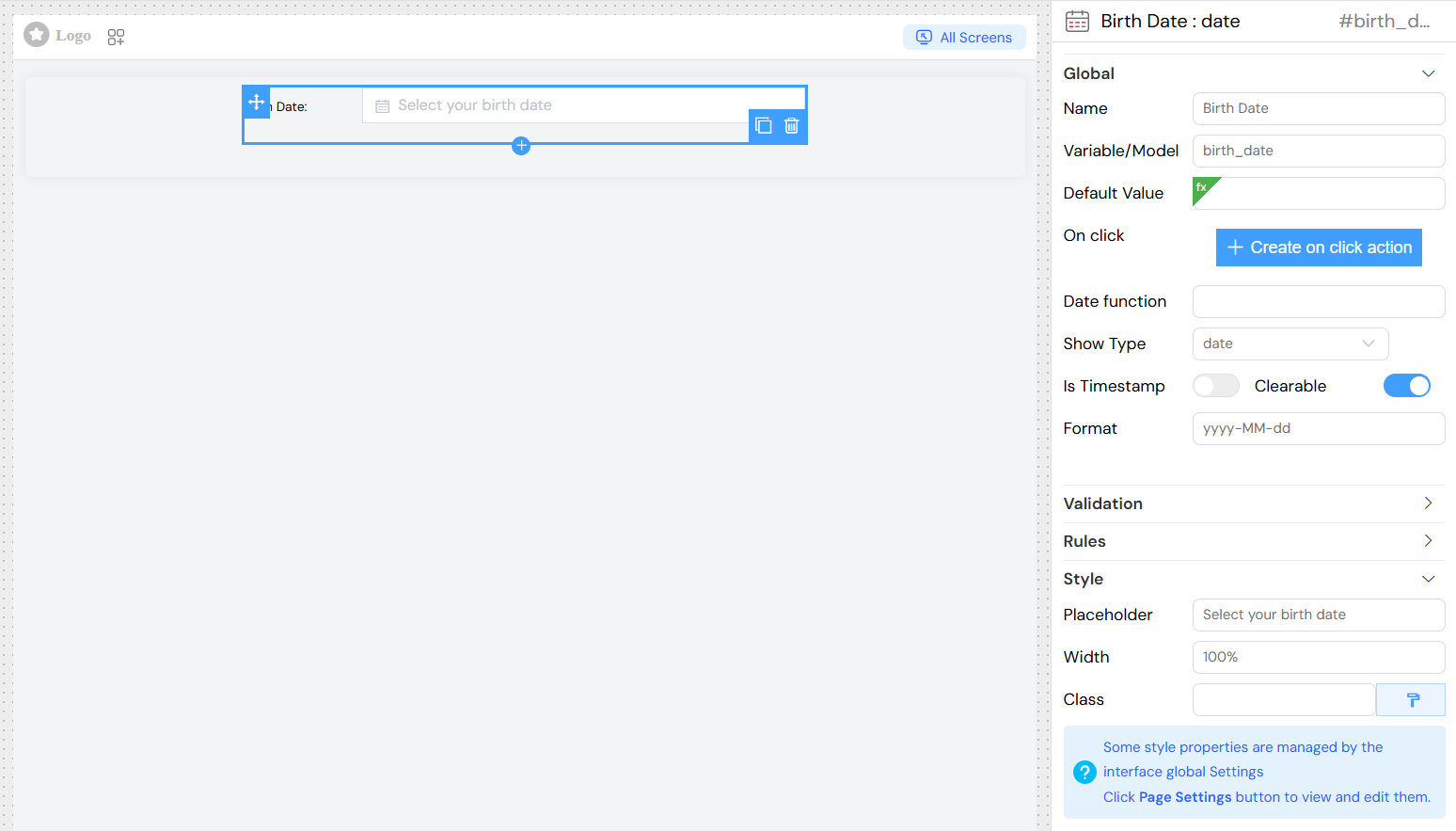

Basic Date Selection​

// Basic configuration
{
  type: 'date',
  name: 'Birth Date',
  model: 'birthDate',
  options: {
    type: 'date',
    format: 'YYYY-MM-DD',
    clearable: true,
    placeholder: 'Select your birth date'
  }
}

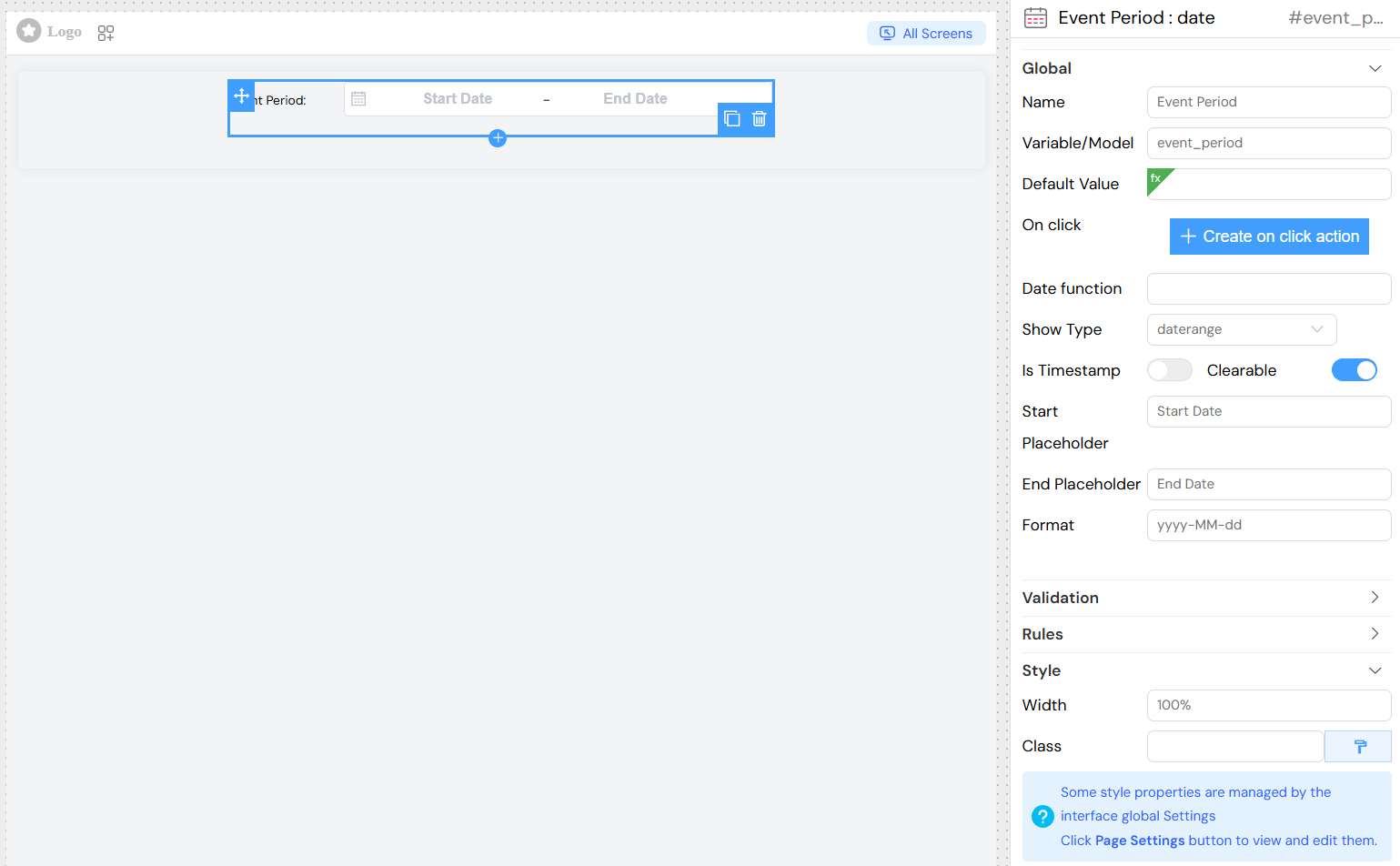

Date Range Selection​

// Date range configuration
{
  type: 'date',
  name: 'Event Period',
  model: 'eventPeriod',
  options: {
    type: 'daterange',
    format: 'YYYY-MM-DD',
    startPlaceholder: 'Start Date',
    endPlaceholder: 'End Date',
    clearable: true
  }
}

DateTime with Validation​

// DateTime with minimum date validation
{
  type: 'date',
  name: 'Appointment Time',
  model: 'appointmentTime',
  options: {
    type: 'datetime',
    format: 'YYYY-MM-DD HH:mm',
    defaultValue: '{{moment().format("YYYY-MM-DD HH:mm")}}',
    dateFunction: 'return { disabledDate: (time) => time.getTime() < Date.now() - 8.64e7 }',
    rules: [
      {
        rule: 'required',
        message: 'Appointment time is required'
      }
    ]
  }
}

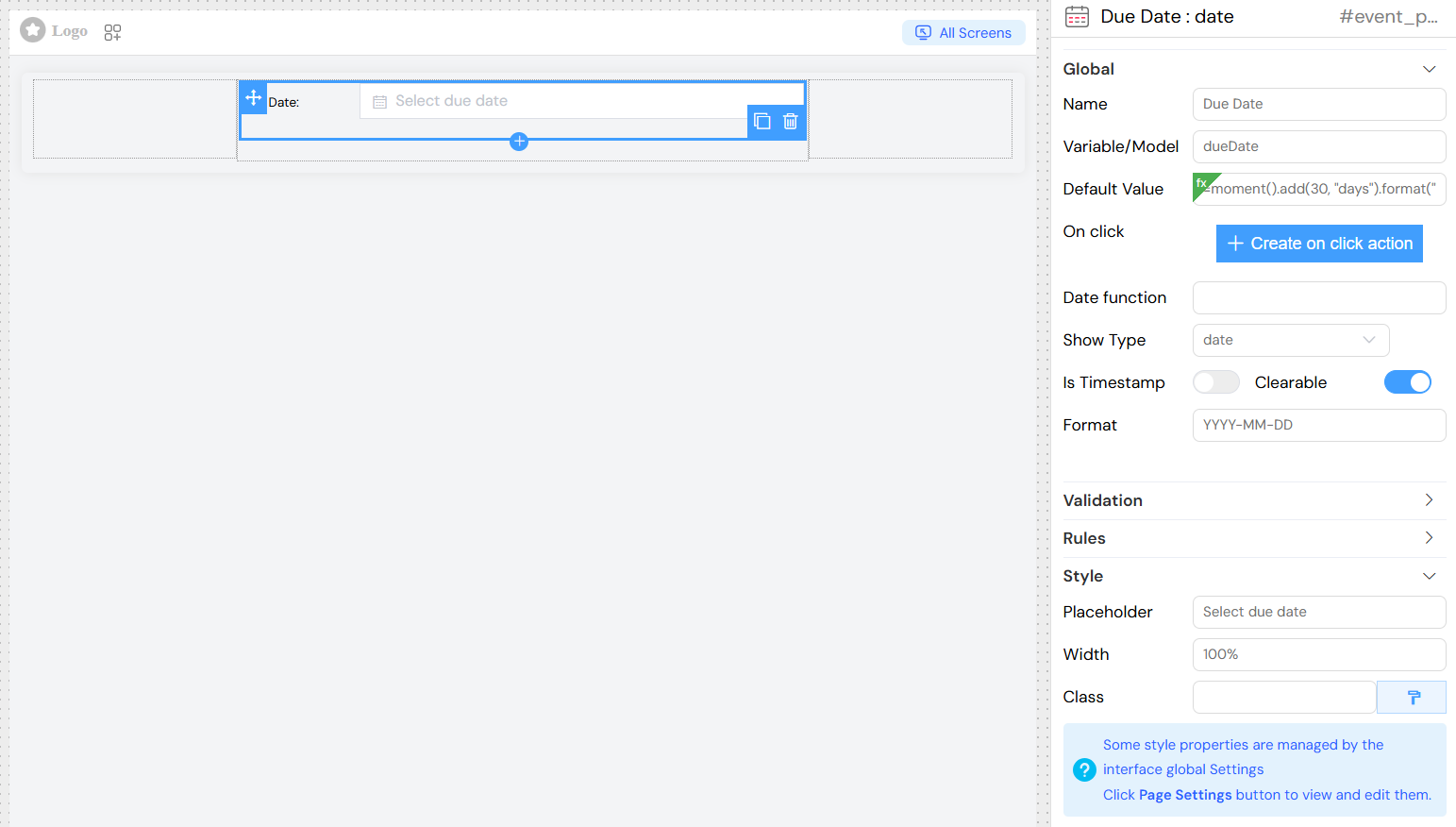

Dynamic Default Values​

// Using dynamic expressions for default values
{
  type: 'date',
  name: 'Due Date',
  model: 'dueDate',
  options: {
    type: 'date',
    format: 'YYYY-MM-DD',
    defaultValue: '{{moment().add(30, "days").format("YYYY-MM-DD")}}', // 30 days from today
    placeholder: 'Select due date'
  }
}

Advanced Features​

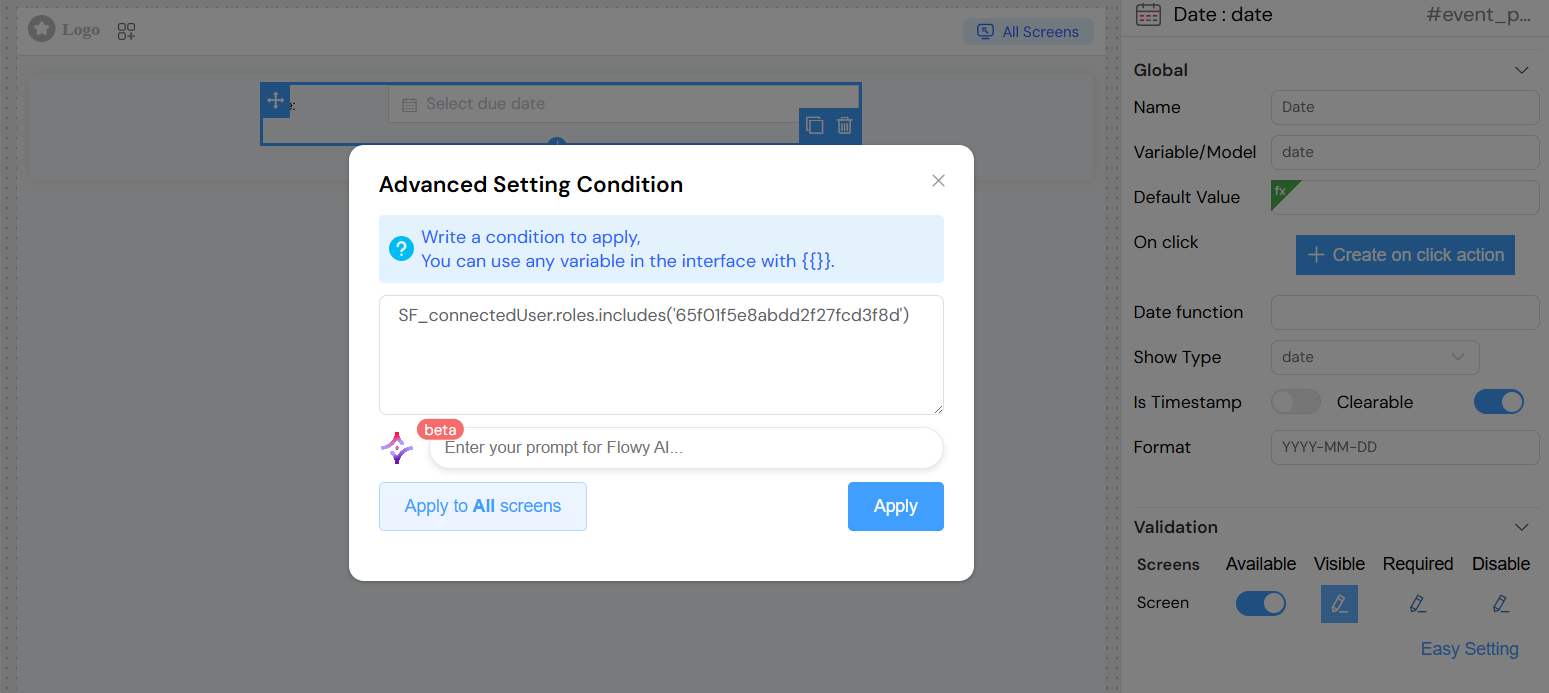

Conditional Visibility​

Configure the widget to show/hide based on other form values:

// Show only if user role is 'manager'
visible: "{{userRole === 'manager'}}"

// Show based on another date field
visible: "{{startDate !== null && startDate !== ''}}"

Custom Date Functions​

Implement complex date restrictions:

// Disable weekends and holidays
dateFunction: `
  const holidays = ['2023-12-25', '2023-01-01'];
  return {
    disabledDate: (time) => {
      const day = time.getDay();
      const dateStr = time.toISOString().split('T')[0];
      return day === 0 || day === 6 || holidays.includes(dateStr);
    }
  }
`

Integration with Forms​

Form Validation​

The date widget integrates seamlessly with form validation:

• Automatic required field validation
• Custom validation rules support
• Real-time validation feedback
• Integration with form submission flow

Data Binding​

Values are automatically bound to the specified model:

// Access selected date in other components
{{selectedDate}} // Raw value
{{moment(selectedDate).format('MMMM DD, YYYY')}} // Formatted display

Best Practices​

1. Format Consistency: Use consistent date formats across your application
2. Validation: Always validate date inputs, especially for business-critical dates
3. User Experience: Provide clear placeholders and labels
4. Accessibility: Ensure proper labeling for screen readers
5. Mobile Optimization: Consider different date picker behaviors for mobile devices
6. Default Values: Use sensible defaults to improve user experience
7. Range Validation: For date ranges, ensure start date is before end date

Troubleshooting​

Common Issues​

Date not saving correctly

• Check the format configuration matches your backend expectations
• Verify the model name is unique and properly defined

Validation not working

• Ensure required rules are properly configured
• Check that validation messages are defined

Date picker not appearing

• Verify the widget is set to visible on the current screen type
• Check for CSS conflicts that might hide the picker

Format display issues

• Confirm the format string follows moment.js conventions
• Test format strings with sample dates

Debug Tips​

1. Use browser developer tools to inspect the generated HTML
2. Check console for JavaScript errors
3. Verify data model values in Vue DevTools
4. Test different screen sizes and orientations
