Currency Widget Documentation

Overview

The Currency widget provides a specialized input field for monetary values with built-in currency formatting, locale support, and validation. It automatically formats numbers according to the selected currency and locale, making it ideal for financial applications, e-commerce platforms, and any interface requiring monetary input.

Features

  • Multiple Currency Support: Supports major international currencies
  • Locale Formatting: Automatic number formatting based on locale settings
  • Precision Control: Configurable decimal places (0-20)
  • Negative Values: Optional support for negative amounts
  • Real-time Formatting: Formats input as user types
  • Validation: Built-in validation rules with custom messages
  • Responsive Design: Adapts to different screen sizes

Basic Configuration

Widget Properties

PropertyTypeDescription
NameStringDisplay label for the currency field
Variable/ModelStringVariable name to store the currency value
Default ValueNumberInitial value when the widget loads

Currency Settings

Currency Selection

Choose from supported currencies:

  • EUR - Euro
  • USD - US Dollar
  • GBP - British Pound
  • MAD - Moroccan Dirham
  • BRL - Brazilian Real
  • INR - Indian Rupee
  • CNY - Chinese Yuan
  • JPY - Japanese Yen
  • SAR - Saudi Riyal
  • IRR - Iranian Rial

Locale Configuration

Set the locale for number formatting:

  • en-US - English (United States)
  • en-GB - English (United Kingdom)
  • fr-FR - French (France)
  • de-DE - German (Germany)
  • es-ES - Spanish (Spain)
  • pt-BR - Portuguese (Brazil)
  • zh-CN - Chinese (Simplified)
  • ja-JP - Japanese
  • ar-SA - Arabic (Saudi Arabia)

Precision Settings

  • Precision: Number of decimal places (0-20)
  • Allow Negative: Toggle to permit negative values

Configuration Interface

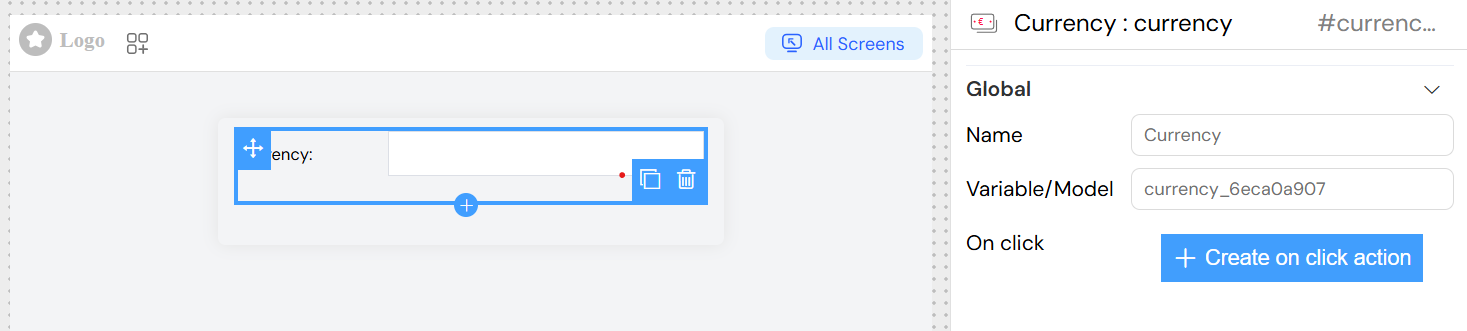

Global Settings

  1. Name: Enter a descriptive label for your currency field
  2. Variable/Model: Define the variable name (e.g., amount, price, total)
  3. Default Value: Set an initial currency value (optional)

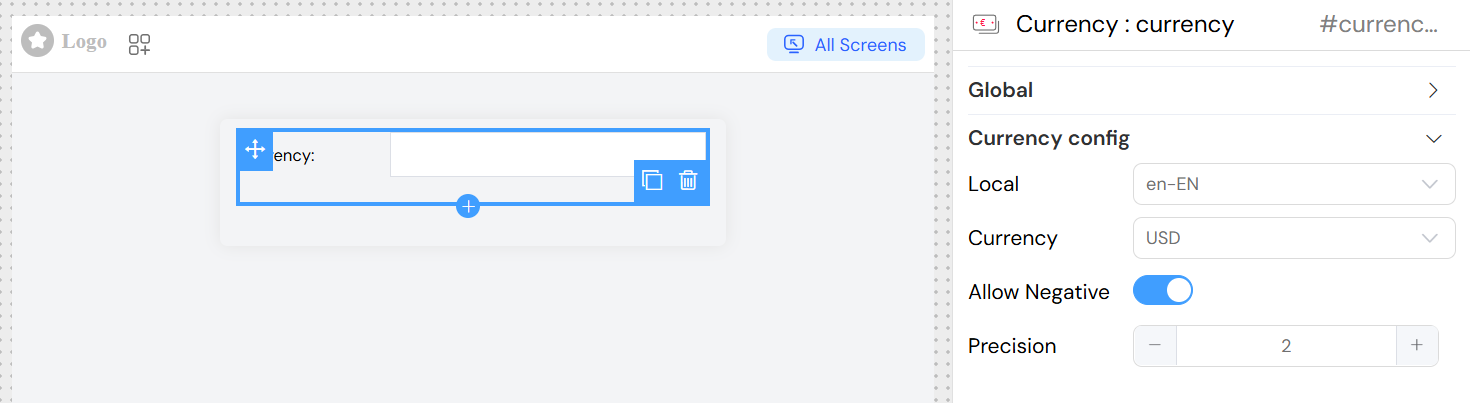

Currency Configuration

  1. Local: Select the locale for number formatting
    • Affects decimal separators, thousand separators
    • Determines currency symbol placement
  2. Currency: Choose the currency type
    • Can be set to "hidden" to hide currency symbol
    • Supports dynamic currency selection via variables
  3. Allow Negative: Enable negative value input
    • Useful for discounts, refunds, or adjustments
  4. Precision: Set decimal places
    • Range: 0-20
    • Common values: 2 for most currencies, 0 for whole numbers

Validation Rules

The currency widget supports comprehensive validation:

Built-in Validation

  • Required Field: Mark field as mandatory
  • Type Validation: Ensures numeric input only
  • Range Validation: Set minimum and maximum values

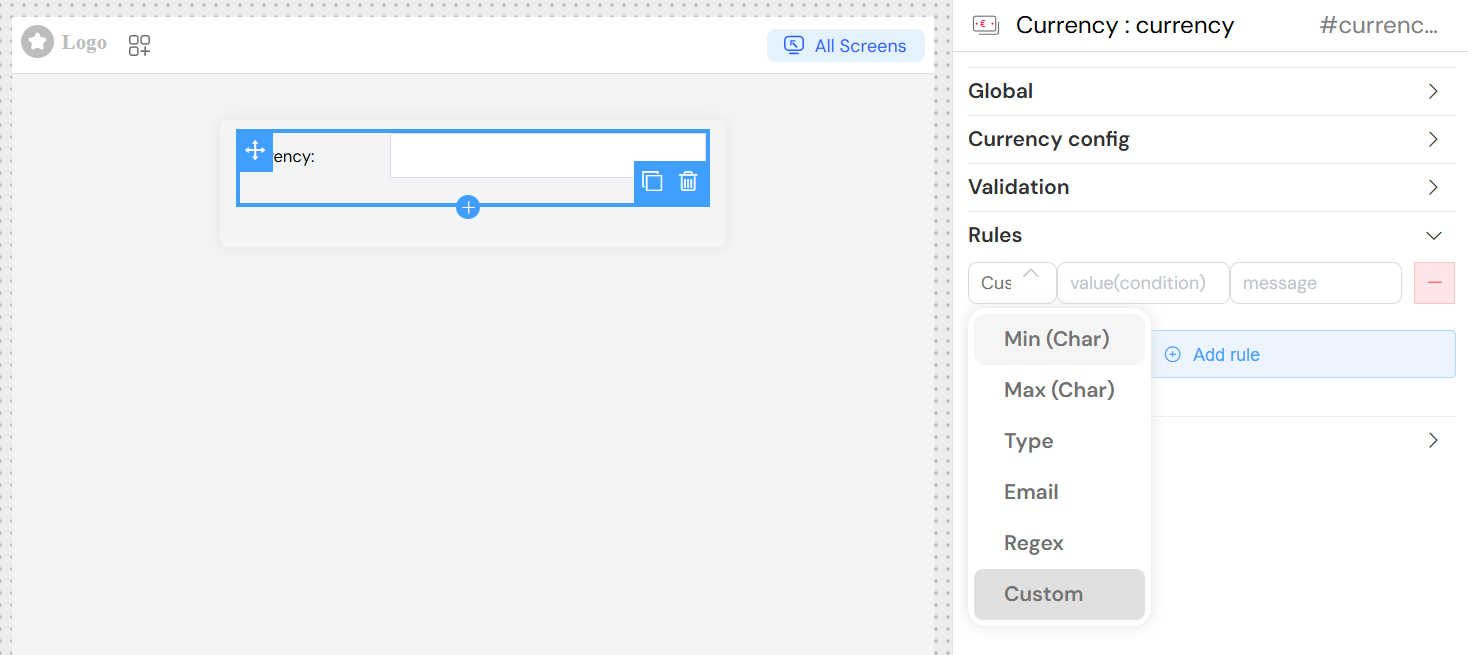

Custom Validation Rules

Add custom validation rules with:

  • Rule Type: Select from available validation rules
  • Value: Set the validation parameter
  • Message: Custom error message for validation failure

Style Configuration

Layout Options

  • Width: Set field width (e.g., "100%", "200px")
  • Placeholder: Hint text shown when field is empty
  • Class: CSS classes for custom styling

Responsive Behavior

  • Layout: Choose between block and inline display
  • Border: Toggle field border visibility

Advanced Features

Dynamic Currency Settings

Currency and locale can be set dynamically using variables:

// Dynamic currency from variable
currency: "${variable_name}"

// Dynamic locale from variable
currency_local: "${locale_variable}"

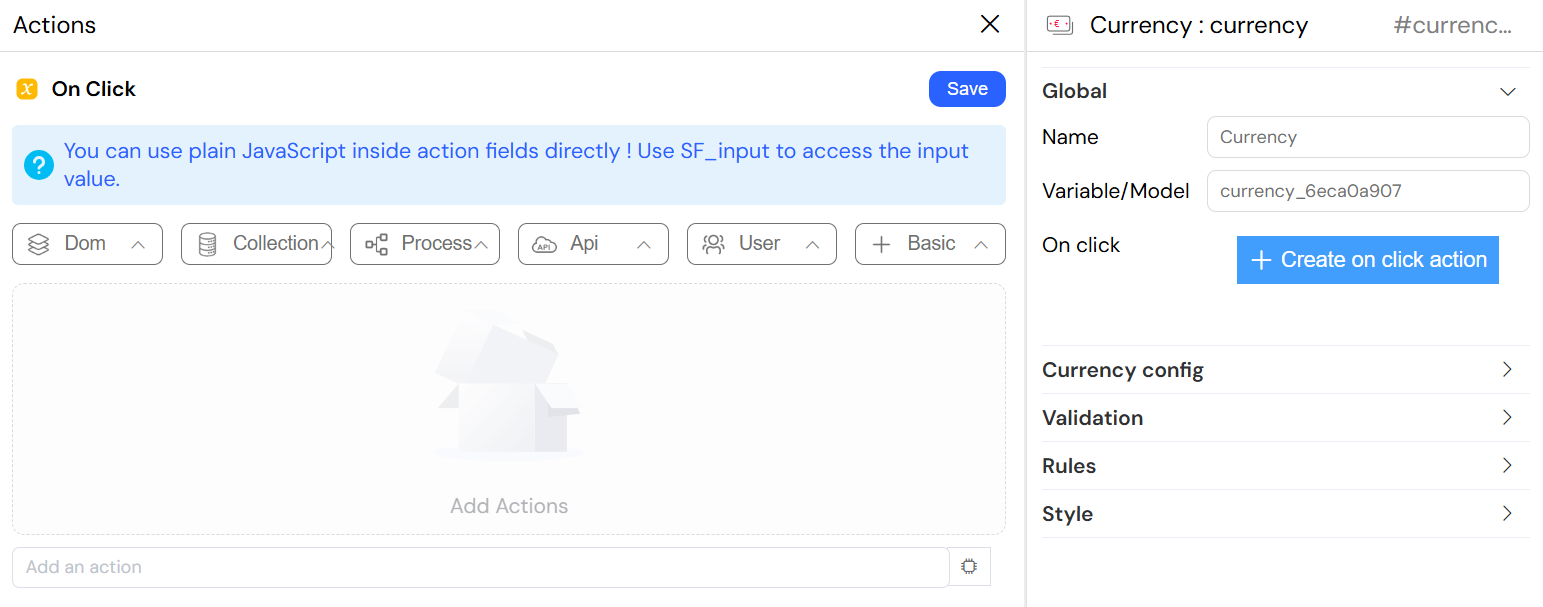

Event Handling

onChange Event

Triggered when the currency value changes:

  • Access new value via event parameter
  • Useful for calculations, validations, or API calls
  • Can trigger custom actions and functions

Validation Screens

Configure widget behavior across different interface screens:

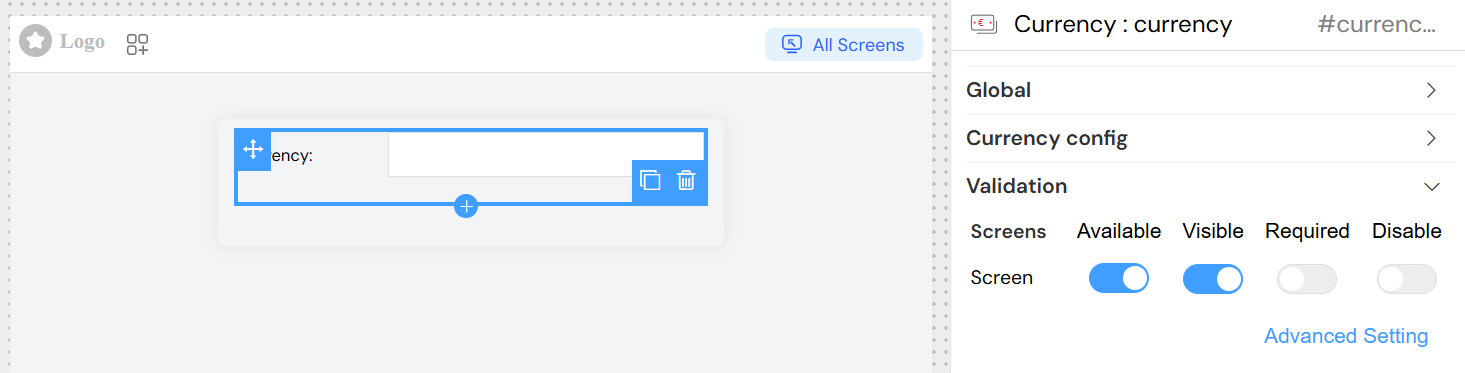

Screen-based Settings

  • Available: Show/hide widget per screen
  • Visible: Control visibility with conditions
  • Required: Make field mandatory per screen
  • Disabled: Disable input per screen

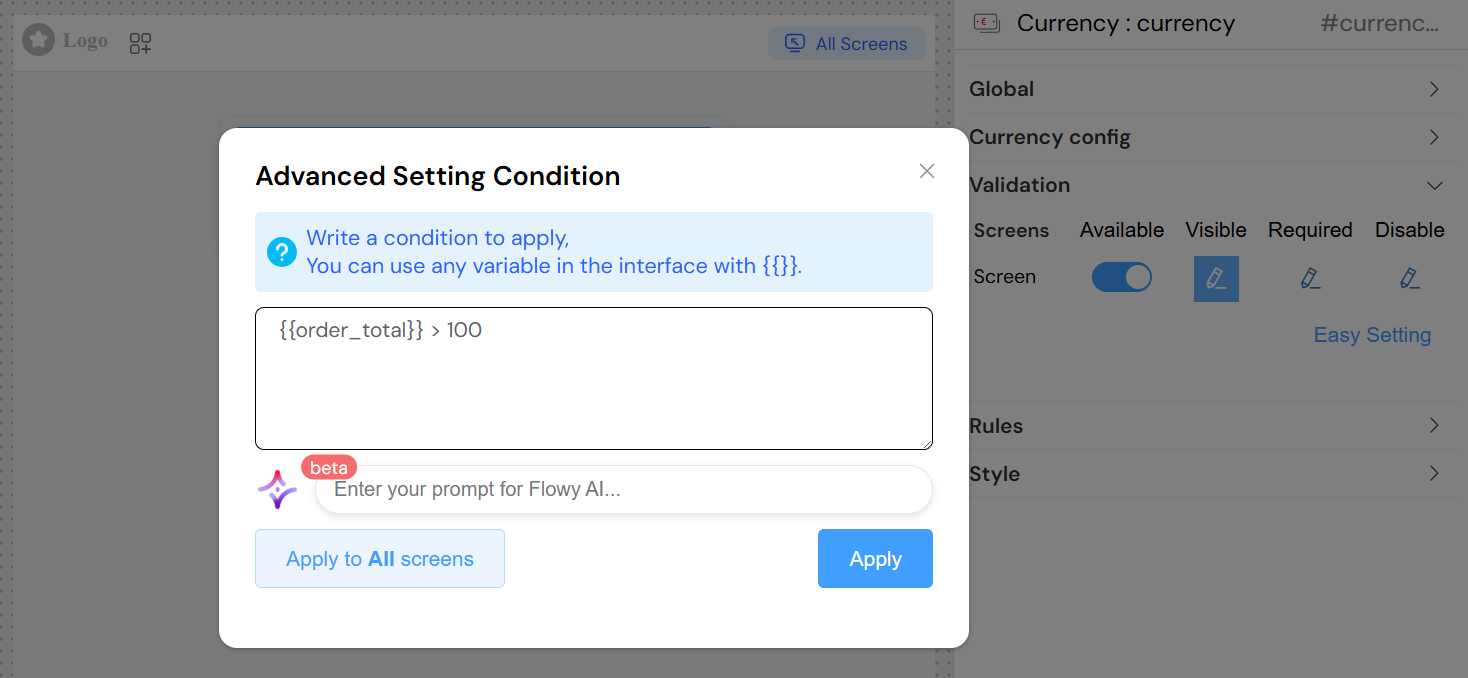

Advanced Conditions

Use JavaScript expressions for dynamic behavior:

// Show only if order total > 100
${order_total} > 100

// Required for premium users
${user.type} === 'premium'

Usage Examples

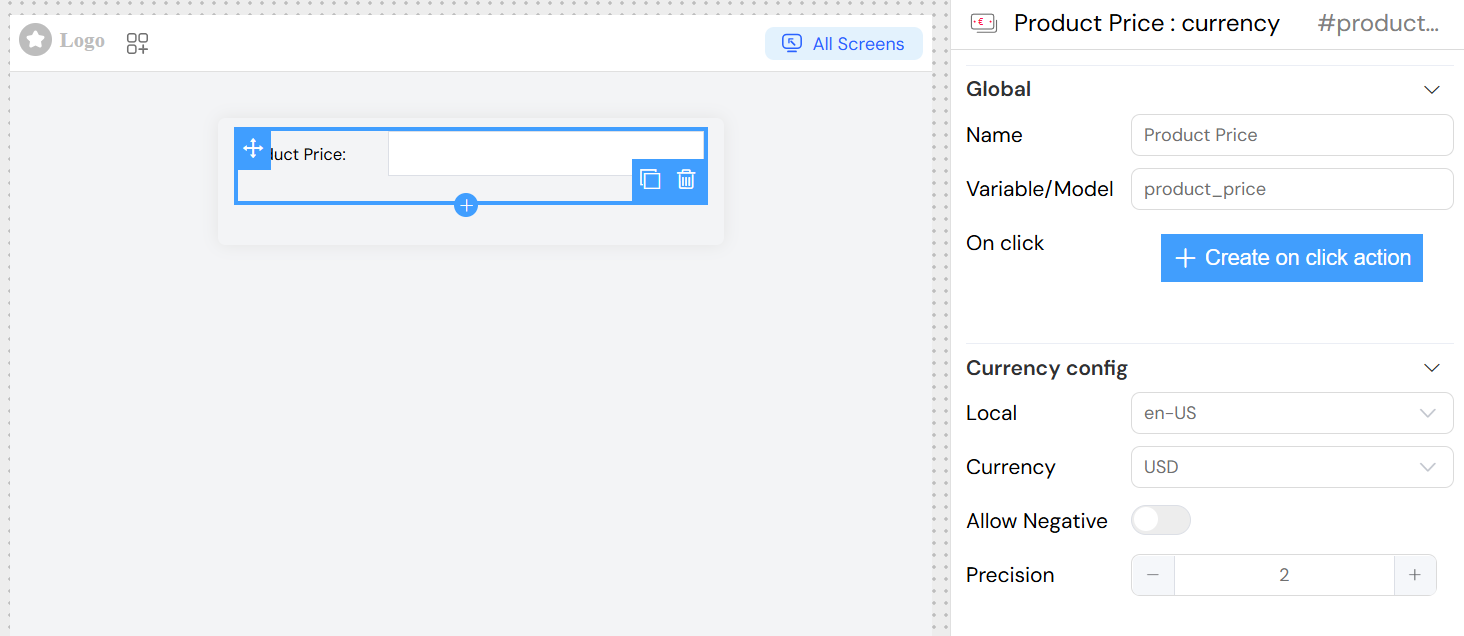

Basic E-commerce Price Input

// Configuration
Name: "Product Price"
Variable: "product_price"
Currency: "USD"
Locale: "en-US"
Precision: 2
Allow Negative: false

Multi-currency Order System

// Configuration
Name: "Order Amount"
Variable: "order_amount"
Currency: "${selected_currency}" // Dynamic from dropdown
Locale: "${user_locale}" // Dynamic from user profile
Precision: 2

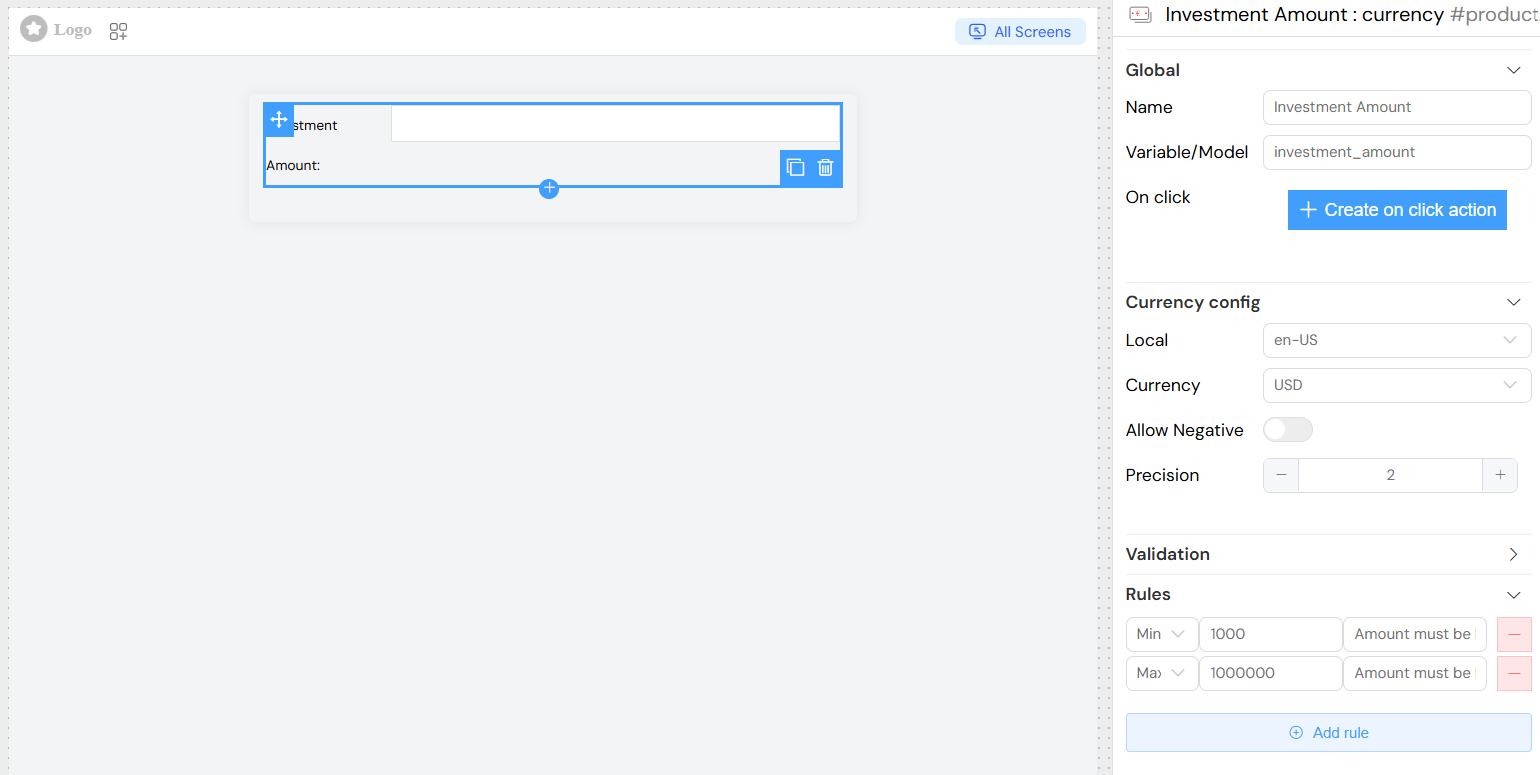

Financial Calculator

// Configuration
Name: "Investment Amount"
Variable: "investment"
Currency: "USD"
Precision: 2
Allow Negative: false
Validation: {
min: 1000,
max: 1000000,
message: "Amount must be between $1,000 and $1,000,000"
}

Integration Tips

Form Integration

  • Works seamlessly within form containers
  • Inherits form validation behavior
  • Supports form submission and reset

API Integration

  • Values stored as numbers for easy API transmission
  • Format display vs. stored value handled automatically
  • Compatible with REST APIs and GraphQL

Data Binding

  • Two-way data binding with form models
  • Real-time updates to connected components
  • Automatic type conversion and validation

Best Practices

User Experience

  1. Clear Labels: Use descriptive field names
  2. Helpful Placeholders: Provide example formats
  3. Immediate Feedback: Show formatting as user types
  4. Error Messages: Clear, actionable validation messages

Performance

  1. Efficient Updates: Use onChange events judiciously
  2. Validation Timing: Balance real-time vs. submit validation
  3. Currency Loading: Cache currency data when possible

Accessibility

  1. Keyboard Navigation: Ensure full keyboard accessibility
  2. Screen Readers: Provide appropriate ARIA labels
  3. Color Contrast: Maintain readable text contrast
  4. Focus Management: Clear focus indicators

Troubleshooting

Common Issues

Currency Not Formatting

  • Check locale setting matches expected format
  • Verify currency code is supported
  • Ensure precision setting is appropriate

Validation Not Working

  • Review validation rules configuration
  • Check required field settings per screen
  • Verify custom validation expressions

Value Not Saving

  • Confirm variable/model name is unique
  • Check form submission configuration
  • Verify data binding is properly configured

Browser Compatibility

  • Modern browsers with JavaScript ES6+ support
  • Vue.js 2.x compatibility required
  • Currency formatting uses Intl.NumberFormat API

Support

For additional assistance with currency widget configuration:

  1. Check validation error messages for specific guidance
  2. Review browser console for JavaScript errors
  3. Test with different currency/locale combinations
  4. Verify integration with your specific form setup
